Class 18: Cancer genomics
Akshara Balachandra 5/31/2019
Load the libraries
require(GenomicDataCommons)
## Loading required package: GenomicDataCommons
## Loading required package: magrittr
##
## Attaching package: 'GenomicDataCommons'
## The following object is masked from 'package:stats':
##
## filter
require(TCGAbiolinks)
## Loading required package: TCGAbiolinks
## Registered S3 methods overwritten by 'ggplot2':
## method from
## [.quosures rlang
## c.quosures rlang
## print.quosures rlang
## Registered S3 method overwritten by 'R.oo':
## method from
## throw.default R.methodsS3
require(maftools)
## Loading required package: maftools
require(dplyr)
## Loading required package: dplyr
##
## Attaching package: 'dplyr'
## The following object is masked from 'package:Biobase':
##
## combine
## The following objects are masked from 'package:BiocGenerics':
##
## combine, intersect, setdiff, union
## The following objects are masked from 'package:GenomicDataCommons':
##
## count, filter, select
## The following objects are masked from 'package:stats':
##
## filter, lag
## The following objects are masked from 'package:base':
##
## intersect, setdiff, setequal, union
status()
## $commit
## [1] "3e22a4257d5079ae9f7193950b51ed9dfc561ed1"
##
## $data_release
## [1] "Data Release 17.0 - June 05, 2019"
##
## $status
## [1] "OK"
##
## $tag
## [1] "1.21.0"
##
## $version
## [1] 1
Section 1
Querying GDC from R
projects <- getGDCprojects()
head(projects)
## dbgap_accession_number
## 1 phs001287
## 2 phs001374
## 3 phs001628
## 4 phs000466
## 5 phs000467
## 6 phs001179
## disease_type
## 1 Adenomas and Adenocarcinomas
## 2 Epithelial Neoplasms, NOS, Squamous Cell Neoplasms
## 3 Myeloid Leukemias
## 4 Clear Cell Sarcoma of the Kidney
## 5 Neuroblastoma
## 6 Germ Cell Neoplasms, Acinar Cell Neoplasms, Miscellaneous Tumors, Thymic Epithelial Neoplasms, Gliomas, Basal Cell Neoplasms, Neuroepitheliomatous Neoplasms, Ductal and Lobular Neoplasms, Complex Mixed and Stromal Neoplasms, Complex Epithelial Neoplasms, Adnexal and Skin Appendage Neoplasms, Mesothelial Neoplasms, Mucoepidermoid Neoplasms, Not Reported, Specialized Gonadal Neoplasms, Cystic, Mucinous and Serous Neoplasms, Adenomas and Adenocarcinomas, Epithelial Neoplasms, NOS, Squamous Cell Neoplasms, Transitional Cell Papillomas and Carcinomas, Paragangliomas and Glomus Tumors, Nevi and Melanomas, Meningiomas
## releasable released state
## 1 FALSE TRUE open
## 2 FALSE TRUE open
## 3 FALSE TRUE open
## 4 TRUE TRUE open
## 5 TRUE TRUE open
## 6 FALSE TRUE open
## primary_site
## 1 Kidney, Bronchus and lung, Uterus, NOS
## 2 Bronchus and lung
## 3 Hematopoietic and reticuloendothelial systems
## 4 Kidney
## 5 Nervous System
## 6 Testis, Gallbladder, Unknown, Other and unspecified parts of biliary tract, Adrenal gland, Thyroid gland, Spinal cord, cranial nerves, and other parts of central nervous system, Peripheral nerves and autonomic nervous system, Stomach, Cervix uteri, Bladder, Small intestine, Breast, Prostate gland, Other and unspecified female genital organs, Other and unspecified major salivary glands, Rectum, Retroperitoneum and peritoneum, Pancreas, Heart, mediastinum, and pleura, Bronchus and lung, Liver and intrahepatic bile ducts, Other and ill-defined sites, Thymus, Penis, Nasopharynx, Ovary, Uterus, NOS, Vulva, Anus and anal canal, Other and unspecified urinary organs, Trachea, Ureter, Other endocrine glands and related structures, Not Reported, Colon, Kidney, Vagina, Skin, Esophagus, Eye and adnexa, Other and ill-defined digestive organs
## project_id id
## 1 CPTAC-3 CPTAC-3
## 2 VAREPOP-APOLLO VAREPOP-APOLLO
## 3 BEATAML1.0-CRENOLANIB BEATAML1.0-CRENOLANIB
## 4 TARGET-CCSK TARGET-CCSK
## 5 TARGET-NBL TARGET-NBL
## 6 FM-AD FM-AD
## name
## 1
## 2 VA Research Precision Oncology Program
## 3 Clinical Resistance to Crenolanib in Acute Myeloid Leukemia Due to Diverse Molecular Mechanisms
## 4 Clear Cell Sarcoma of the Kidney
## 5 Neuroblastoma
## 6 Foundation Medicine Adult Cancer Clinical Dataset (FM-AD)
## tumor
## 1 3
## 2 APOLLO
## 3 CRENOLANIB
## 4 CCSK
## 5 NBL
## 6 AD
Find number of cases per project
cases.by.proj <- cases() %>% facet('project.project_id') %>%
aggregations()
head(cases.by.proj$project.project_id)
## key doc_count
## 1 FM-AD 18004
## 2 TARGET-NBL 1120
## 3 TCGA-BRCA 1098
## 4 TARGET-AML 988
## 5 TARGET-WT 652
## 6 TCGA-GBM 617

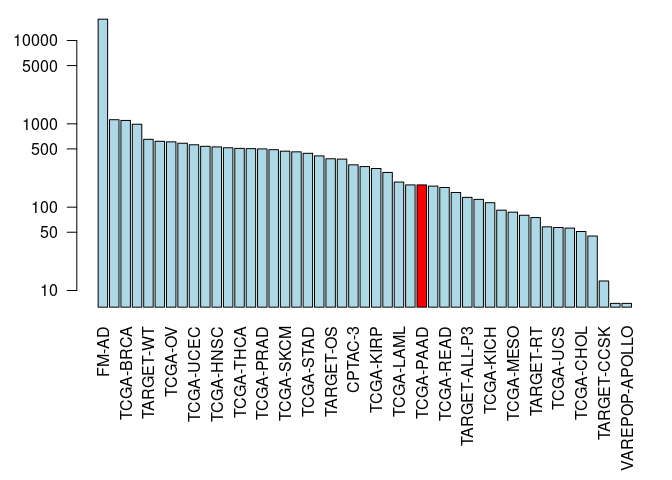

Plot the number of cases by project
colvec <- rep('lightblue', nrow(cases.by.proj$project.project_id))
colvec[cases.by.proj$project.project_id$key == 'TCGA-PAAD'] <- 'red'
par(mar = c(9, 4, 1, 1))
barplot(cases.by.proj$project.project_id$doc_count,
names.arg = cases.by.proj$project.project_id$key,
log = 'y',
las = 2,
col = colvec)
Exploratory analyses.
samp <- getSampleFilesSummary('TCGA-PAAD')
## Accessing information for project: TCGA-PAAD
## Using 'state_comment' as value column. Use 'value.var' to override
## Aggregation function missing: defaulting to length
head(samp)
## .id Biospecimen_Biospecimen Supplement
## 1 TCGA-2J-AAB1 14
## 2 TCGA-2J-AAB4 14
## 3 TCGA-2J-AAB6 14
## 4 TCGA-2J-AAB8 14
## 5 TCGA-2J-AAB9 14
## 6 TCGA-2J-AABA 14
## Biospecimen_Slide Image_Diagnostic Slide
## 1 1
## 2 1
## 3 1
## 4 1
## 5 1
## 6 1
## Biospecimen_Slide Image_Tissue Slide Clinical_Clinical Supplement
## 1 1 8
## 2 1 8
## 3 1 8
## 4 1 8
## 5 1 8
## 6 1 8
## Copy Number Variation_Copy Number Segment_Genotyping Array_Affymetrix SNP 6.0
## 1 2
## 2 2
## 3 2
## 4 2
## 5 2
## 6 2
## Copy Number Variation_Gene Level Copy Number Scores_Genotyping Array_Affymetrix SNP 6.0
## 1 1
## 2 1
## 3 1
## 4 1
## 5 1
## 6 1
## Copy Number Variation_Masked Copy Number Segment_Genotyping Array_Affymetrix SNP 6.0
## 1 2
## 2 2
## 3 2
## 4 2
## 5 2
## 6 2
## DNA Methylation_Methylation Beta Value_Methylation Array_Illumina Human Methylation 450
## 1 1
## 2 1
## 3 1
## 4 1
## 5 1
## 6 1
## Sequencing Reads_Aligned Reads_miRNA-Seq_Illumina
## 1 1
## 2 1
## 3 1
## 4 1
## 5 1
## 6 1
## Sequencing Reads_Aligned Reads_RNA-Seq_Illumina
## 1 1
## 2 1
## 3 1
## 4 1
## 5 1
## 6 1
## Sequencing Reads_Aligned Reads_WXS_Illumina
## 1 2
## 2 2
## 3 2
## 4 2
## 5 2
## 6 2
## Simple Nucleotide Variation_Aggregated Somatic Mutation_WXS
## 1 4
## 2 4
## 3 4
## 4 4
## 5 4
## 6 4
## Simple Nucleotide Variation_Annotated Somatic Mutation_WXS
## 1 4
## 2 4
## 3 4
## 4 4
## 5 4
## 6 4
## Simple Nucleotide Variation_Masked Somatic Mutation_WXS
## 1 4
## 2 4
## 3 4
## 4 4
## 5 4
## 6 4
## Simple Nucleotide Variation_Raw Simple Somatic Mutation_WXS
## 1 4
## 2 4
## 3 4
## 4 4
## 5 4
## 6 4
## Transcriptome Profiling_Gene Expression Quantification_RNA-Seq
## 1 3
## 2 3
## 3 3
## 4 3
## 5 3
## 6 3
## Transcriptome Profiling_Isoform Expression Quantification_miRNA-Seq
## 1 1
## 2 1
## 3 1
## 4 1
## 5 1
## 6 1
## Transcriptome Profiling_miRNA Expression Quantification_miRNA-Seq
## 1 1
## 2 1
## 3 1
## 4 1
## 5 1
## 6 1
## project
## 1 TCGA-PAAD
## 2 TCGA-PAAD
## 3 TCGA-PAAD
## 4 TCGA-PAAD
## 5 TCGA-PAAD
## 6 TCGA-PAAD
query <- GDCquery(project = 'TCGA-PAAD',
data.category = 'Transcriptome Profiling',
data.type = 'Gene Expression Quantification')
## --------------------------------------
## o GDCquery: Searching in GDC database
## --------------------------------------
## Genome of reference: hg38
## --------------------------------------------
## oo Accessing GDC. This might take a while...
## --------------------------------------------
## ooo Project: TCGA-PAAD
## --------------------
## oo Filtering results
## --------------------
## ooo By data.type
## ----------------
## oo Checking data
## ----------------
## ooo Check if there are duplicated cases
## Warning: There are more than one file for the same case. Please verify query results. You can use the command View(getResults(query)) in rstudio
## ooo Check if there results for the query
## -------------------
## o Preparing output
## -------------------
ans <- getResults(query)
head(ans)
## data_release data_type
## 1 12.0 - 17.0 Gene Expression Quantification
## 2 12.0 - 17.0 Gene Expression Quantification
## 3 12.0 - 17.0 Gene Expression Quantification
## 4 12.0 - 17.0 Gene Expression Quantification
## 5 12.0 - 17.0 Gene Expression Quantification
## 6 12.0 - 17.0 Gene Expression Quantification
## updated_datetime
## 1 2019-05-23T23:18:56.468363+00:00
## 2 2019-05-23T23:18:56.468363+00:00
## 3 2019-05-23T23:18:56.468363+00:00
## 4 2019-05-23T23:18:56.468363+00:00
## 5 2019-05-23T23:18:56.468363+00:00
## 6 2019-05-23T23:18:56.468363+00:00
## file_name
## 1 4df16e07-cdbc-46cc-8b9c-39d4a9dca09e.FPKM-UQ.txt.gz
## 2 1f997074-0020-47e6-9928-5bf7209c552d.htseq.counts.gz
## 3 cc133a8a-77ad-4570-852e-df72548c6897.htseq.counts.gz
## 4 e7cc80ef-4b87-47d9-bebe-1fb05b5b04a2.FPKM-UQ.txt.gz
## 5 232f085b-6201-4e4d-8473-e592b8d8e16d.htseq.counts.gz
## 6 a155ec07-2baf-404b-85bc-28330a8fee33.FPKM.txt.gz
## submitter_id
## 1 4df16e07-cdbc-46cc-8b9c-39d4a9dca09e_uqfpkm
## 2 1f997074-0020-47e6-9928-5bf7209c552d_count
## 3 cc133a8a-77ad-4570-852e-df72548c6897_count
## 4 e7cc80ef-4b87-47d9-bebe-1fb05b5b04a2_uqfpkm
## 5 232f085b-6201-4e4d-8473-e592b8d8e16d_count
## 6 a155ec07-2baf-404b-85bc-28330a8fee33_fpkm
## file_id file_size
## 1 4ac5c2da-497f-4fb4-80db-c7e774c1873a 526515
## 2 78bb8d49-54aa-43a1-aec4-31da818cdb14 250443
## 3 82d7d3b5-85bc-46b9-b9cd-2bdeb279dc0f 255221
## 4 3cbf3948-3ac4-4824-9b6f-6efcf13066b5 556107
## 5 13dfd8da-5d36-48fa-a82c-77b5c5e77e7b 252815
## 6 c6a9b770-845a-4a10-ac02-28928def043c 504140
## cases id
## 1 TCGA-YY-A8LH-01A-11R-A36G-07 4ac5c2da-497f-4fb4-80db-c7e774c1873a
## 2 TCGA-H6-A45N-01A-11R-A26U-07 78bb8d49-54aa-43a1-aec4-31da818cdb14
## 3 TCGA-RB-AA9M-01A-11R-A39D-07 82d7d3b5-85bc-46b9-b9cd-2bdeb279dc0f
## 4 TCGA-HZ-8637-01A-11R-2404-07 3cbf3948-3ac4-4824-9b6f-6efcf13066b5
## 5 TCGA-HZ-7918-01A-11R-2156-07 13dfd8da-5d36-48fa-a82c-77b5c5e77e7b
## 6 TCGA-2J-AABP-01A-11R-A41B-07 c6a9b770-845a-4a10-ac02-28928def043c
## created_datetime md5sum
## 1 2016-05-30T18:58:14.322399-05:00 fece0a61ad30a786de8ee50d25028d61
## 2 2016-05-30T18:21:31.785829-05:00 31eaf2ddc469f44cbbcddf92e631af67
## 3 2016-05-30T18:32:49.244208-05:00 435a535f7904090d6b97eb2eee7ed71e
## 4 2016-05-29T10:21:16.740924-05:00 9d250e9709c04a2005a93948fc8e11eb
## 5 2016-05-29T10:37:43.483990-05:00 fb22772a5d5948778ea2f77cdecb3050
## 6 2016-05-30T18:36:35.355486-05:00 7dd83ad6f57154e1ce9c921f2d61d7a3
## data_format access state version data_category
## 1 TXT open released 1 Transcriptome Profiling
## 2 TXT open released 1 Transcriptome Profiling
## 3 TXT open released 1 Transcriptome Profiling
## 4 TXT open released 1 Transcriptome Profiling
## 5 TXT open released 1 Transcriptome Profiling
## 6 TXT open released 1 Transcriptome Profiling
## type experimental_strategy project
## 1 gene_expression RNA-Seq TCGA-PAAD
## 2 gene_expression RNA-Seq TCGA-PAAD
## 3 gene_expression RNA-Seq TCGA-PAAD
## 4 gene_expression RNA-Seq TCGA-PAAD
## 5 gene_expression RNA-Seq TCGA-PAAD
## 6 gene_expression RNA-Seq TCGA-PAAD
## analysis_id analysis_updated_datetime
## 1 509f861f-23f1-4201-b0ea-90cfd03ccd49 2018-09-10T15:08:41.786316-05:00
## 2 e196345c-9a5d-481d-abd1-67c65c271283 2018-09-10T15:08:41.786316-05:00
## 3 7d970bb5-b3d5-4e90-9a32-cfddb0590287 2018-09-10T15:08:41.786316-05:00
## 4 f6899766-4888-436e-bc07-3158e2fbf0a9 2018-09-10T15:08:41.786316-05:00
## 5 3283f6cf-5aff-4833-b7a8-60726c06d7f6 2018-09-10T15:08:41.786316-05:00
## 6 21eda9da-73c8-44c2-a666-c7ca7a570a23 2018-09-10T15:08:41.786316-05:00
## analysis_created_datetime
## 1 2016-05-30T18:58:14.322399-05:00
## 2 2016-05-30T18:21:31.785829-05:00
## 3 2016-05-30T18:32:49.244208-05:00
## 4 2016-05-29T10:21:16.740924-05:00
## 5 2016-05-29T10:37:43.483990-05:00
## 6 2016-05-30T18:36:35.355486-05:00
## analysis_submitter_id analysis_state
## 1 4df16e07-cdbc-46cc-8b9c-39d4a9dca09e_uqfpkm released
## 2 1f997074-0020-47e6-9928-5bf7209c552d_count released
## 3 cc133a8a-77ad-4570-852e-df72548c6897_count released
## 4 e7cc80ef-4b87-47d9-bebe-1fb05b5b04a2_uqfpkm released
## 5 232f085b-6201-4e4d-8473-e592b8d8e16d_count released
## 6 a155ec07-2baf-404b-85bc-28330a8fee33_fpkm released
## analysis_workflow_link analysis_workflow_type
## 1 https://github.com/NCI-GDC/htseq-cwl HTSeq - FPKM-UQ
## 2 https://github.com/NCI-GDC/htseq-cwl HTSeq - Counts
## 3 https://github.com/NCI-GDC/htseq-cwl HTSeq - Counts
## 4 https://github.com/NCI-GDC/htseq-cwl HTSeq - FPKM-UQ
## 5 https://github.com/NCI-GDC/htseq-cwl HTSeq - Counts
## 6 https://github.com/NCI-GDC/htseq-cwl HTSeq - FPKM
## analysis_workflow_version tissue.definition
## 1 v1 Primary solid Tumor
## 2 v1 Primary solid Tumor
## 3 v1 Primary solid Tumor
## 4 v1 Primary solid Tumor
## 5 v1 Primary solid Tumor
## 6 v1 Primary solid Tumor
nrow(ans)
## [1] 546
Section 2
Read in fasta sequence
require(bio3d)
## Loading required package: bio3d
seqs <- read.fasta('./data/lecture18_sequences.fa')
#head(seqs)
Q1: Identify sequence regions that contain all 9-mer peptides that are only found in the tumor.
Align the sequences and do it.
aln <- seqaln(seqs, exefile = 'muscle', outfile = 'cancer_aln.fasta')
align <- aln$ali[,which(aln$ali[2,] != '-')] # filter out parts of seq where it doesn't exist
inds <- which(apply(align, 2, function(x) {length(unique(x)) != 1}))
#align[,inds]
nine.mers <- lapply(inds, function(x) {
if(x < 8) {
return(aln$ali[2,0:(x+8)])
}
return(aln$ali[2,(x - 8):(x+8)])
})
nine.mers
## [[1]]
## [1] "S" "P" "L" "P" "S" "Q" "A" "M" "L" "D" "L" "M" "L" "S" "P" "D" "D"
##
## [[2]]
## [1] "D" "P" "G" "P" "D" "E" "A" "P" "W" "M" "P" "E" "A" "A" "P" "P" "V"
##
## [[3]]
## [1] "Y" "L" "D" "D" "R" "N" "T" "F" "V" "H" "S" "V" "V" "V" "P" "Y" "E"
##
## [[4]]
## [1] "I" "L" "T" "I" "I" "T" "L" "E" "V" "-" "-" "-" "-" "-" "-" "-" "-"
max_length <- length(nine.mers[[1]])
list_lists <- sapply (nine.mers, function (x) {length (x) <- max_length; return (x)})
t(list_lists)
## [,1] [,2] [,3] [,4] [,5] [,6] [,7] [,8] [,9] [,10] [,11] [,12] [,13]
## [1,] "S" "P" "L" "P" "S" "Q" "A" "M" "L" "D" "L" "M" "L"
## [2,] "D" "P" "G" "P" "D" "E" "A" "P" "W" "M" "P" "E" "A"
## [3,] "Y" "L" "D" "D" "R" "N" "T" "F" "V" "H" "S" "V" "V"
## [4,] "I" "L" "T" "I" "I" "T" "L" "E" "V" "-" "-" "-" "-"
## [,14] [,15] [,16] [,17]
## [1,] "S" "P" "D" "D"
## [2,] "A" "P" "P" "V"
## [3,] "V" "P" "Y" "E"
## [4,] "-" "-" "-" "-"
write.fasta(seqs = t(list_lists), ids = c(1:4), file = 'nine-mers.fasta')
